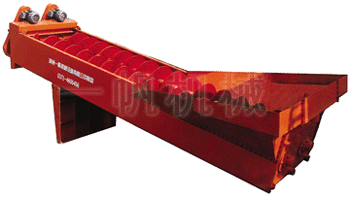

XL Series Sand Stone Washer

  XL Series Sand Stone Washer can wash and separate the soil and sundries in the sand. Its novel structure, adjustable overflow dam baffle and reliable arrangement can ensure the washing result. It is suitable in highway, construction and hydroelectric project.
Features and Benefits:
  (1) High efficiency and reasonable structure;
  (2) High capacity and low consumption;

Model

XL915

2XL915

XL1115

2XL1115

Screw Diameter(mm)

915

915

1115

1115

Length of Tub (mm)

7585

7585

9782

9782

Max Feed Size (mm)

≤10

≤10

≤10

≤10

Capacity (t/h)

100

200

175

350

Speed Of Screw (r/min)

21

21

17

17

Motor Power (kw)

11

2*11

15

2*15

Water Consumption (t/h)

10-80

20-160

20-150

40-300

Weight (t)

6.27

11.11

10.18

17.94
