Home >>Products

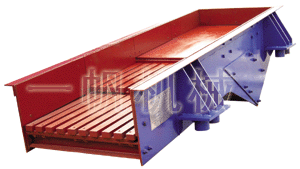

GZT Series Vibrating Feeder


 GZT Series Vibrating Feeder adopts the vibrating motor to produce vibration force. It is used to feed materials into primary crusher evenly, and meanwhile because of the grit-shaped screen, it can screen away soil contained in the raw material, and increase the capacity of primary crushing. It is suitable to feed material into primary crusher in hydroelectric field, building material and mining industry.
Features and Benefits:
  Simple structure and easy maintenance

Model Max Feed Size(mm) Capacity(t/h) Motor Power(kw) Installation Slope(°) Double Amplotude(mm) Weight(kg)
GZT-0724 450 30-80 2×1.5 10 4-6 2936
GZT-0932 560 80-150 2×2.4 10 4-6 3359
GZT-0940 560 80-180 2×3.2 10 4-6 3608
GZT-1148 600 150-300 2×5.5 10 4-6 4808
GZT-1256 800 180-400 2×7.5 10 4-6 5994
GZT-1560 1000 400-600 2×13 10 4-6 9896
